Spiral System Parts Request - (800)763-2120

Info@SpiralSystems.com


Many spiral conveyor parts are not built by the spiral manufacturer but rather purchased from outside sources.

Through working on virtually every manufactured brand of spiral over the last 20 plus years we have identified  these part, and have them available to you at a guaranteed low price. We also can identify the spiral part or manufacturer by viewing photos you can upload on the link below, or call us toll free to get quick answers to your questions or immediate needs.

Bearings Replacement Parts

Intro: If bearing do not get enough lubrication they will ware over time, many times if there is a screetching noise coming from your spiral it is a bearing failure. Follow your ears to the noise and see which bearing it is coming from this needs to be replaced asap or further system damage WILL occur.

BEARINGS: PLEASE NOTE IF THESE BEARINGS ARE TO BE USED IN A FREEZER OR A HOT ROOM CONDITION PLEASE SPECIFY IN NOTES SO THE CORRECT GREASE CAN BE LOADED INTO THE BEARINGS.

Flange Bearings

Yes
No
Yes, if Applicable
No
Bearings

Pillow Block

Yes
No



Pillow Blocks

Idler & tension Bearings For perimeter drive units

Yes
No





Ceter Pipe or stub shaft bearings

Roller
Sleeve
Yes
No
Yes
No
Ceter Pipe

* Required

Side guide rollers or UHMW thick flat bumpers, pulleys, and drive sprockets

Intro: since spiral belt is collapsed when it is released from the cage either at the enterance or exit the belt must go from a curved configuration to a straight configuration. Most spirals have a fixed bumper or a side guide set of two rollers to keep the belt tracking inline as it leaves the spiral. This can especially be a issue with freezers as the belt freezes in the curved position it has been tracking in.

It the belt is not guided it will tend to jump off the drive sprockets in the take-up drive. When this occurs the belt will hit the spiral frame and the spiral frame will be cut like a chainsaw creating belt, spiral frame damage, and metal fragments in you product.

Side guide bumpers: FLAT

Yes
No
Flat Bumpers

Side guild Rollers:

Yes
No





Take-up drive sprockets

Yes
No
Yes
No

Donut Pulleys (no flange)

Yes
No
Yes
No

* Required





UHMW WEAR PROFILES

Intro: These are the ware items that either you belts ride on (track ware strip) or your belt is driven by (cage ware Bars). Track ware strips can not only ware out from friction interface from the belt riding up them but if your belt is not clean the friction of the “dirt” will wear them out prematurely .

The cage drive bars need to be replaced as they will lose drive interface with the belt. A common occurrence is when belt is flipped to preserve belt life the master rods are not all replaced. The master rods are not machine ground and usually have a rough end so when they interface with the cage cut into the UHMW which not only can damage the stainless cage bars under the UHMW but damage the belt , and leave a lot of shaved UHMW on you product as it runs through the spiral.

Low Profile
Standard
Yes
No

* Required

TOTAL SHAFT REPLACEMENT
Yes
NO Number of drive pullies
Yes
No
Yes
No

* Required
Spiral Belting

We can provide and also recommend types of replacement or new spiral belting. There are applications where plastic belting is best suited i.e. wide belts or sticky products, and applications for Stainless steel belts i.e products that benefit from more open belting styles or that freeze at a better rate due to a colder contact surface.

Many systems can be converted to plastic from Stainless we would have to look at how the system is built to make a quality recommendation.

Stainless belting

Standard
Reduced

Plastic Belting


* Required
Electrical

Limit switches/Proximity sensors

Background: we can supply and also replace total safety systems on you spiral. Weather you need a total ground fault system because your lift arm system doesn’t work (very common) or a single switch we can supply what you need to protect your system from a major breakdown.

Armed
Proximity
Limit
Ground Fault
Freezer
Cooler
Ambient
Proofer
Other

* Required

We carry total assemblies for tensioners including springs.
We carry gear boxes as well as size gearboxes to increase spiral speed

Fan inverters:

Background: If you are like most manufacturers you run a wide verity of products through your spiral if it is a freezer or cooler you may not need to run your fan speeds at a constant. For instance a bakery that runs  16 oz loaves will need a higher airspeed then a 2 oz roll to freeze the product. There are energy rebates in many states we can identify and fill out paperwork to in some cases pay for the whole installation.
The savings are very high when you trim the fans back. This occurs on two levels

  1. If  you run your fans at 50% and you have 80 horsepower of fans you save 40 horsepower operational costs
  2. The heat that is created from the friction of the fan blade cutting through the air causes high levels of heat release which has to be absorbed by your refrigeration system. In a freezer we calculate that 40 horsepower will create a average of 11 tons of heat rejection for your refrigeration system to absorb. The average freezer running at -25 room temperature requires a average of 3-4 horsepower per ton to get to the desired temperature. We can calculate that 11 tons will require 40 horsepower at the compressor room to absorb heat rejection of fans.

Above we have identified a way to save 80 horsepower per hour on one line  by trimming fan speed in a freezer .  We can do a audit inverter design for air balance in the room, and provide a panel with required inverters which will link to your PLC for onscreen control and operational menu/recipe screens.

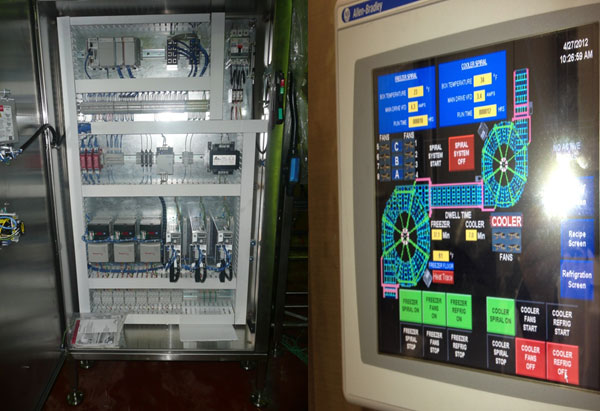

Control Panels

Control Panels

We can update and replace your entire control panel with custom designs and onsite programming to build a interface between all you operating equipment upstream and downstream. Our control panels are a high value in keeping your operation on

On your next spiral project,
contact us
for the most cost effective solutions you can find.

Committed to Customer Service

  • Our systems are large investments, and we are committed to taking the time to work closely with our customers to provide a top quality system that fits the company's needs.
  • We provide extensive post-installation support to ensure that your system is running efficiently and problem-free.
  • On-site training is available to instruct your staff on proper maintenance and upkeep of the system.
  • A Spiral Systems representative is always on call to help resolve a problem immediately, should one occur.
